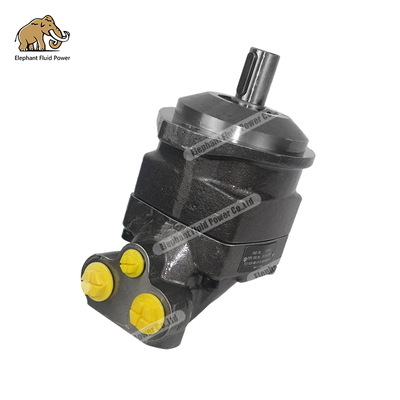

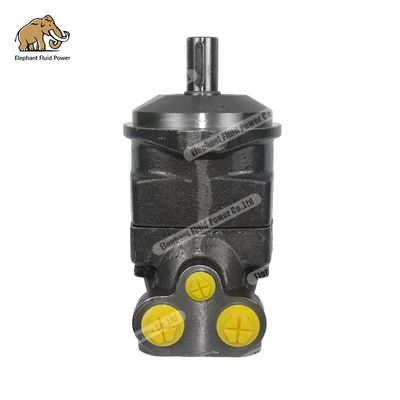

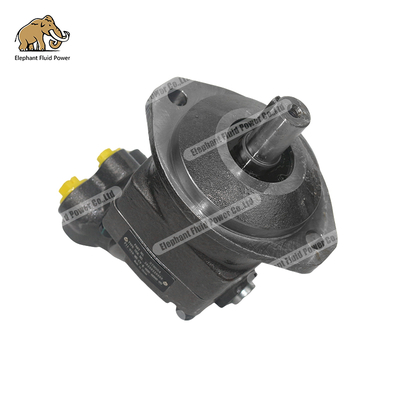

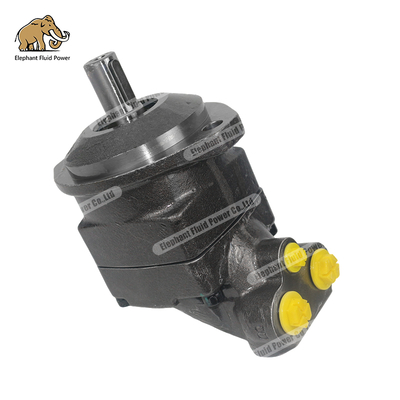

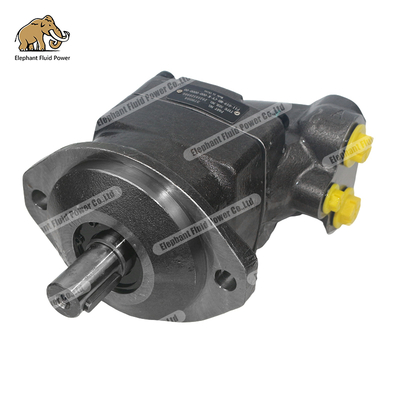

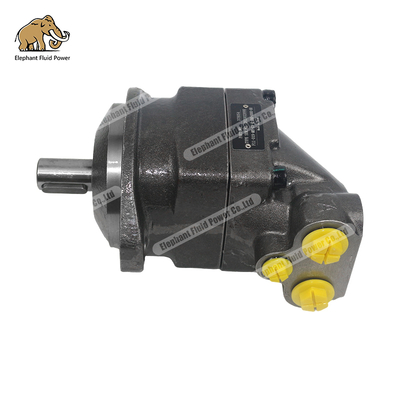

F11-019 3707893 Parker hydraulic piston motor 19 cm3 with cylindrical shaft CETOP seals type V

Elephant Fluid Power Co., Ltd supplies the F11-019 3707893 Parker hydraulic piston motor with OEM quality, competitive pricing, fast lead times, and excellent after-sales service.

• Hydraulic Piston Motor fixed displacement for high-demand applications
• Shaft type: Straight shaft 25 mm diameter with 8 mm width parallel key
• Flange type: CETOP with 2 holes, 112 mm diameter, 140 mm center distance
• Displacement: 19.0 cm³/rev
• Ports A and B: Threaded G3/4
• Drain port: G3/8
• Rotation: Bidirectional
• Max speed: 8100 rpm (intermittent operation: 8900 rpm)
• Minimum rotation speed: 50 rpm
• Max working pressure: 350 bar (intermittent operation: 420 bar)
• Max oil flow: 154 liters/minute (intermittent operation: 169 liters/minute)
• Torque at 100 bar: 30.2 Nm
• Shaft seal material: Type V
• Intermittent working value allowed for maximum 6 seconds per minute
